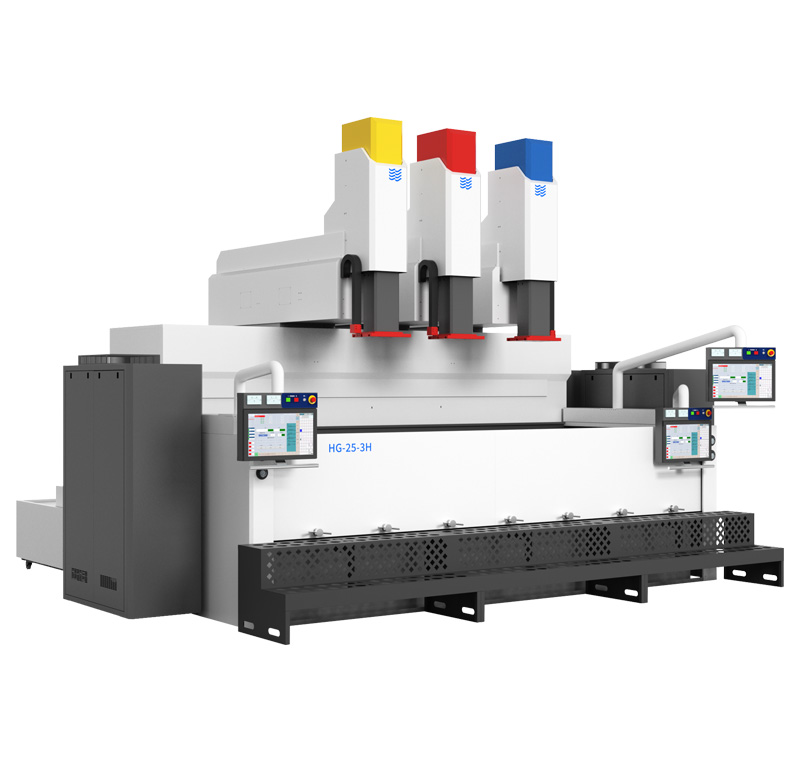

HG - 25 - 3H / Specification table
1、Specification
NO. | Classification | Unit | Specification |
1 | X1、X2 、X3 axes travel | mm | 1400 |
2 | Y1、Y2 、Y3 axes travel | mm | 700 |
3 | Z1、Z2 、Z3 axes travel | mm | 500 |
4 | Electrode to table distance | mm | 1350~850 |
5 | Table dimension | mm | 2450×1000 |
6 | Work tank dimensions | mm | 3500×1800×750 |
7 | Max. electrode weight | Kg | 100 |
8 | Max. work piece weight | Kg | 20000 |
9 | Machine Net weight | Kg | 18500 |
10 | Service tank capacity | L | 3500 |
11 | Machine Foot Print Size | mm | 5300x3800x3300 |
12 | Total power requirements | KVA | 10/10/10 |
13 | Power input | KVA | 220V, 50Hz/60Hz, 3 Phases |
14 | Max. machining current | A | 50/50/50 |
15 | Operating System | WIN7 / HANPULS | |
16 | Display Type | 21’’ LED Display Touch Screen | |
17 | Position Unit | mm | 0.001 |
18 | Position Command Type | Absolute/Incremental Type | |
19 | Best Surface Roughness | Ra | 0.1μm |
20 | Min. Electrode Wear | % | 0.1 |
21 | System Language | English | |
22 | Communication Interface | LAN、USB、100M Network Card |
2、Random products standard configuration
NO. | Classification | Unit | Specification |
1 | Fires Sensors device | set | 1 |
2 | Liquid surface sensors device | set | 1 |
3 | Automatic fire extinguishing installation | set | 1 |
4 | Electrode holder | set | 3 |
5 | T-BOX | set | 3 |
6 | Standard tool & box | set | 1 |
